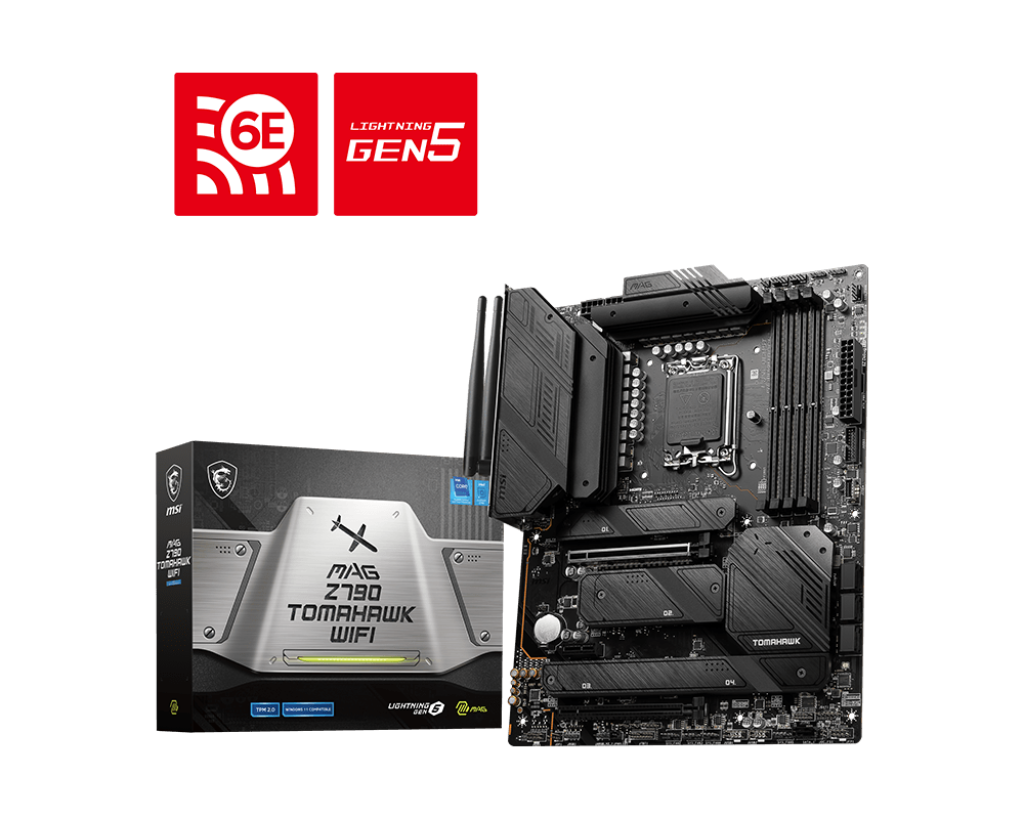

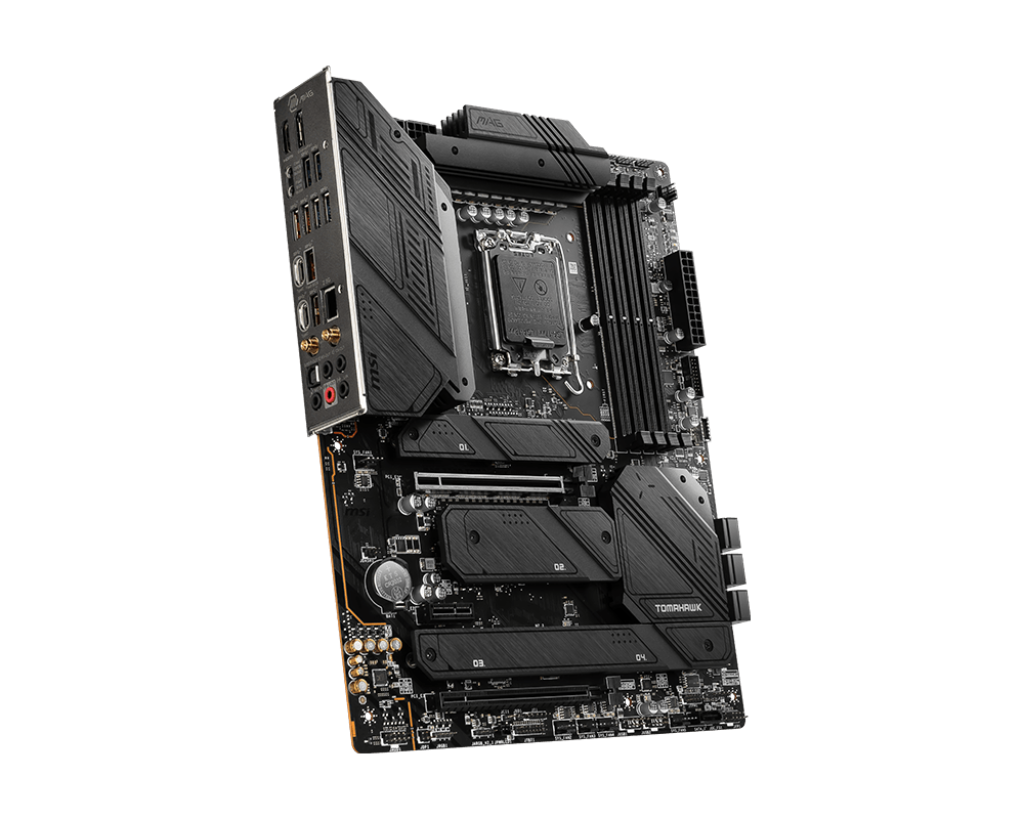

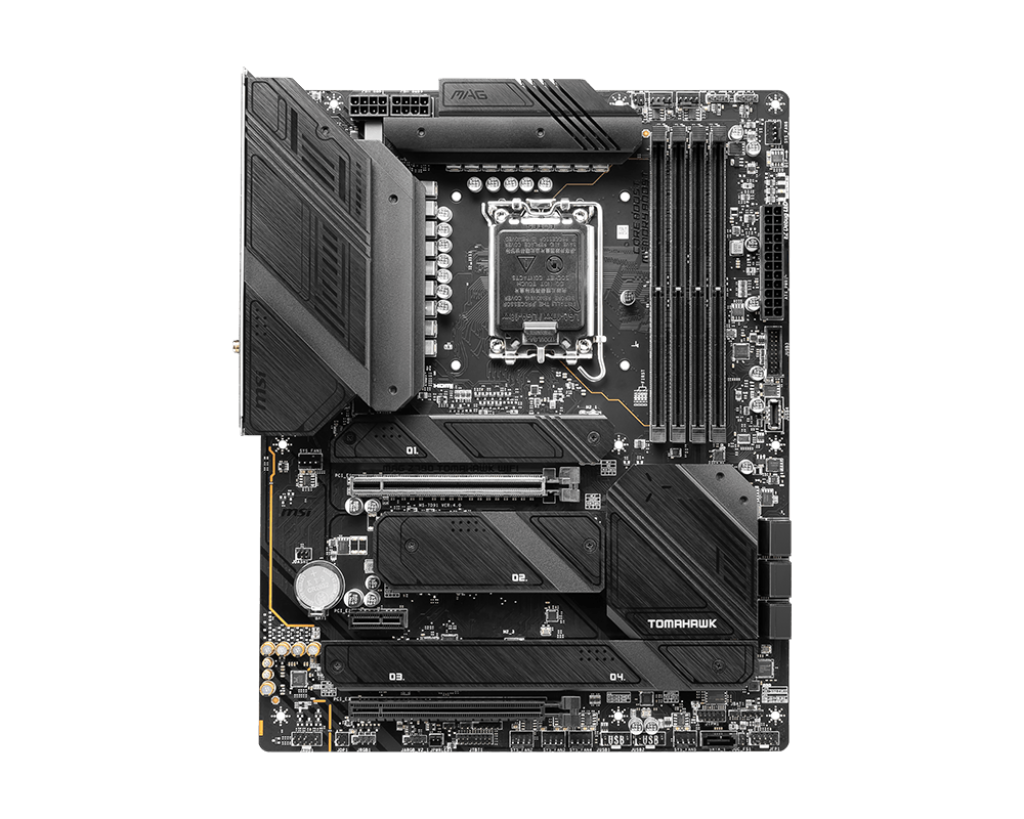

MSI MAG Z790 TOMAHAWK WIFI

MAG Z790 TOMAHAWK WIFI

• Support des processeurs Intel® Core™ de 12ème et 13ème génération / Pentium® Gold et Celeron® pour socket LGA 1700

• Support mémoire DDR5, jusqu'à 7200+ (OC) MHz

• Alimentation améliorée : arrangement en miroir à 16+1+1 phases, deux connecteurs d'alimentation CPU à 8 broches et technologies Core Boost et Memory Boost

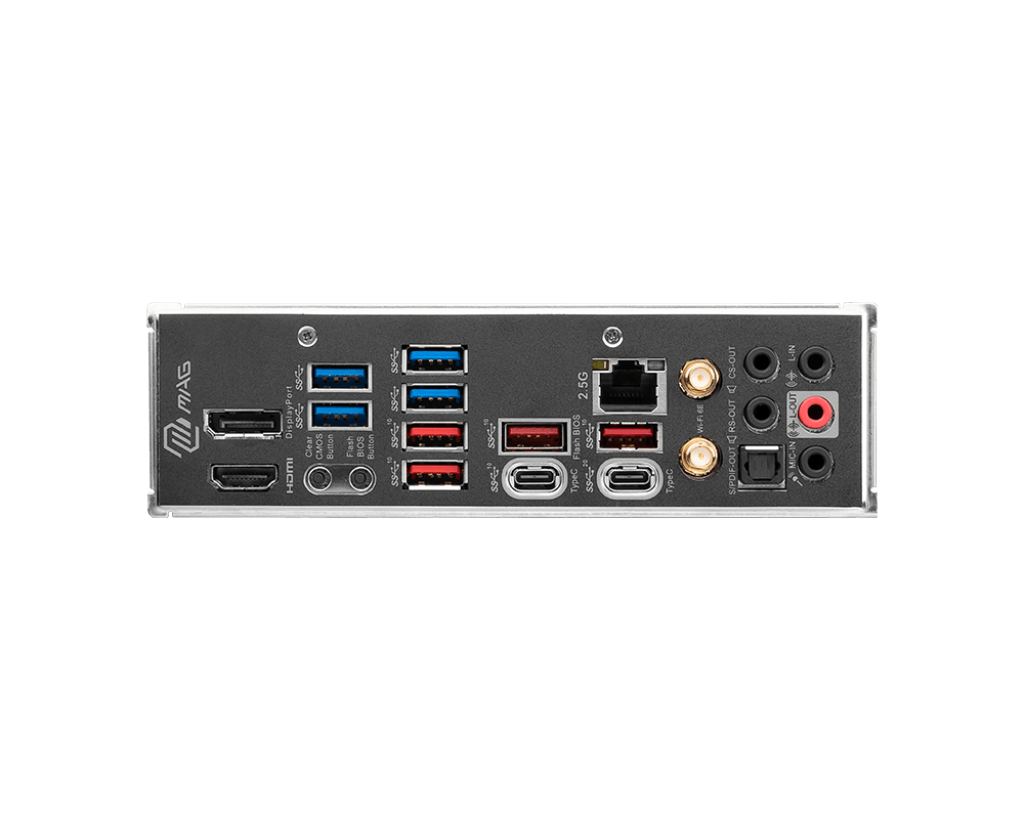

• Transferts de données ultrarapides avec les connecteurs PCIe 5.0, Lightning Gen4 x4 M.2 et USB 3.2 Gen2x2

• Refroidissement efficace et performances assurées avec un dissipateur plus large et des slots M.2 Shield Frozr

• Audio Boost 5 pour une qualité audio parfaite et une immersion totale

• Circuit imprimé de niveau serveur à 6 couches de cuivre de 2 onces

CHIPSET | INTEL Z790CPU | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® ProcessorsMEMORY | 4x DDR5, Maximum Memory Capacity 256GBMemory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHzMax. overclocking frequency:• 1DPC 1R Max speed up to 7200+ MHz• 1DPC 2R Max speed up to 6600+ MHz• 2DPC 1R Max speed up to 6400+ MHz• 2DPC 2R Max speed up to 5600+ MHzSupports Intel® XMP3.0 OCSupports Dual-Controller Dual-Channel modeSupports non-ECC, un-buffered memoryONBOARD GRAPHICS | 1x HDMI™Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*1x DisplayPortSupport DP 1.4, maximum resolution of 8K 60Hz**Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.SLOT | 2x PCI-E x16 slot (Qty)Supports x16/x41x PCI-E x1 slot (Qty)PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)STORAGE | 4x M.2 (Qty)M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devicesM.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devicesM.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devicesM.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices7x SATA 6G (Qty)RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices*Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices* SATA_A1_A2 do not support RAID function.USB | 4x USB 2.0 (Front)4x USB 5Gbps Type A (Rear)2x USB 5Gbps Type A (Front)4x USB 10Gbps Type A (Rear)1x USB 10Gbps Type C (Rear)1x USB 10Gbps Type C (Front)1x USB 20Gbps Type C (Rear)LAN | Intel® 2.5Gbps LANWIRELESS LAN & BLUETOOTH | Intel® Wi-Fi 6EThe Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4GbpsSupports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth® 5.3, FIPS, FISMA* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.AUDIO | Realtek® ALC4080 Codec7.1-Channel USB High Performance AudioSupports S/PDIF outputSupports up to 32-Bit/384 kHz playback on front panelINTERNAL IO | 1x Power Connector(ATX_PWR)2x Power Connector(CPU_PWR)1x CPU Fan1x Pump Fan6x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x TBT connector (JTBT, supports RTD3)1x Tuning Controller connector(JDASH)3x Addressable V2 RGB LED connector (JARGB_V2)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports2x USB 5Gbps Type A ports1x USB 10Gbps Type C portsLED FEATURE | 4x EZ Debug LED
